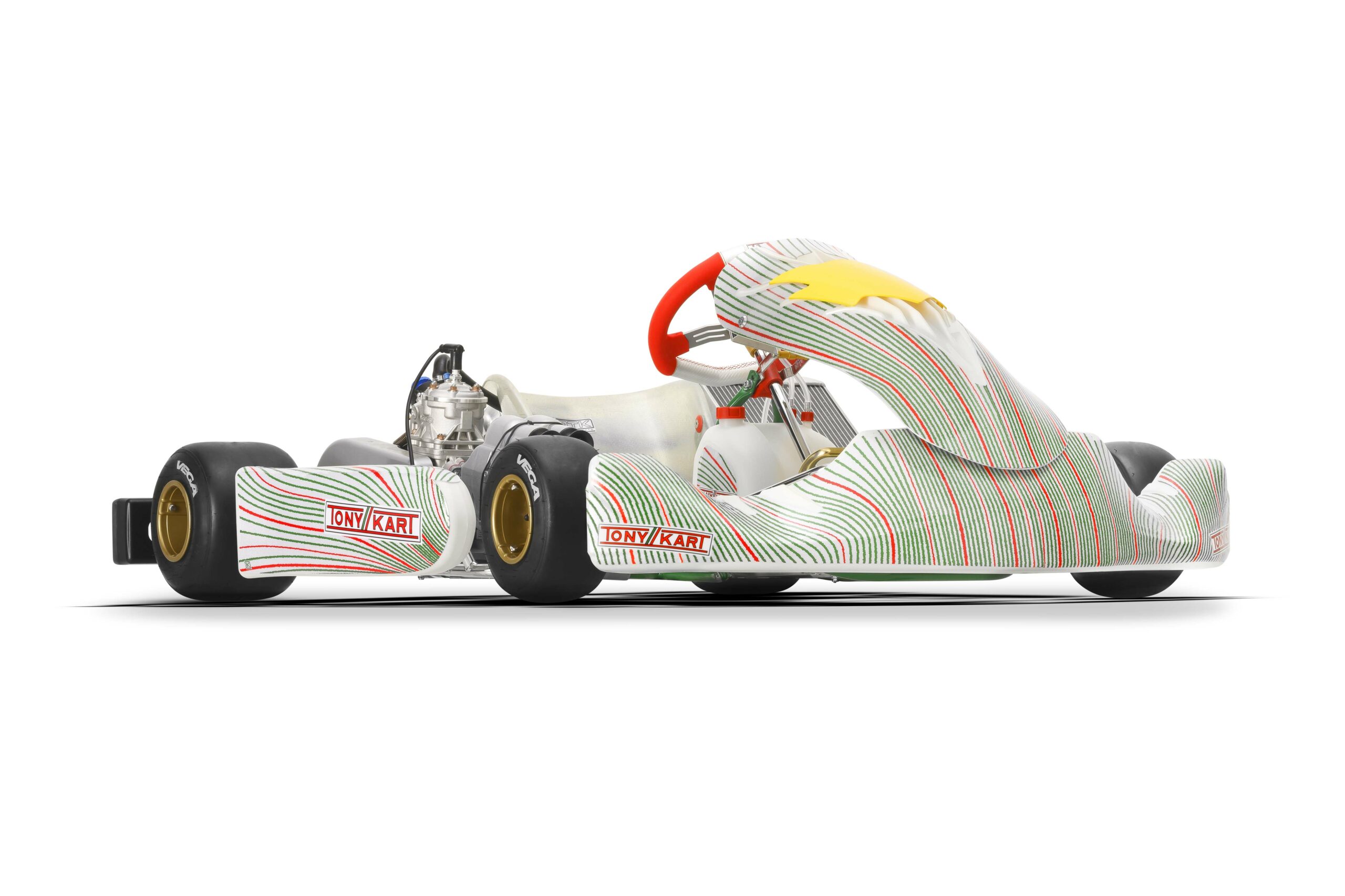

Tony Kart OK (Direct Drive)

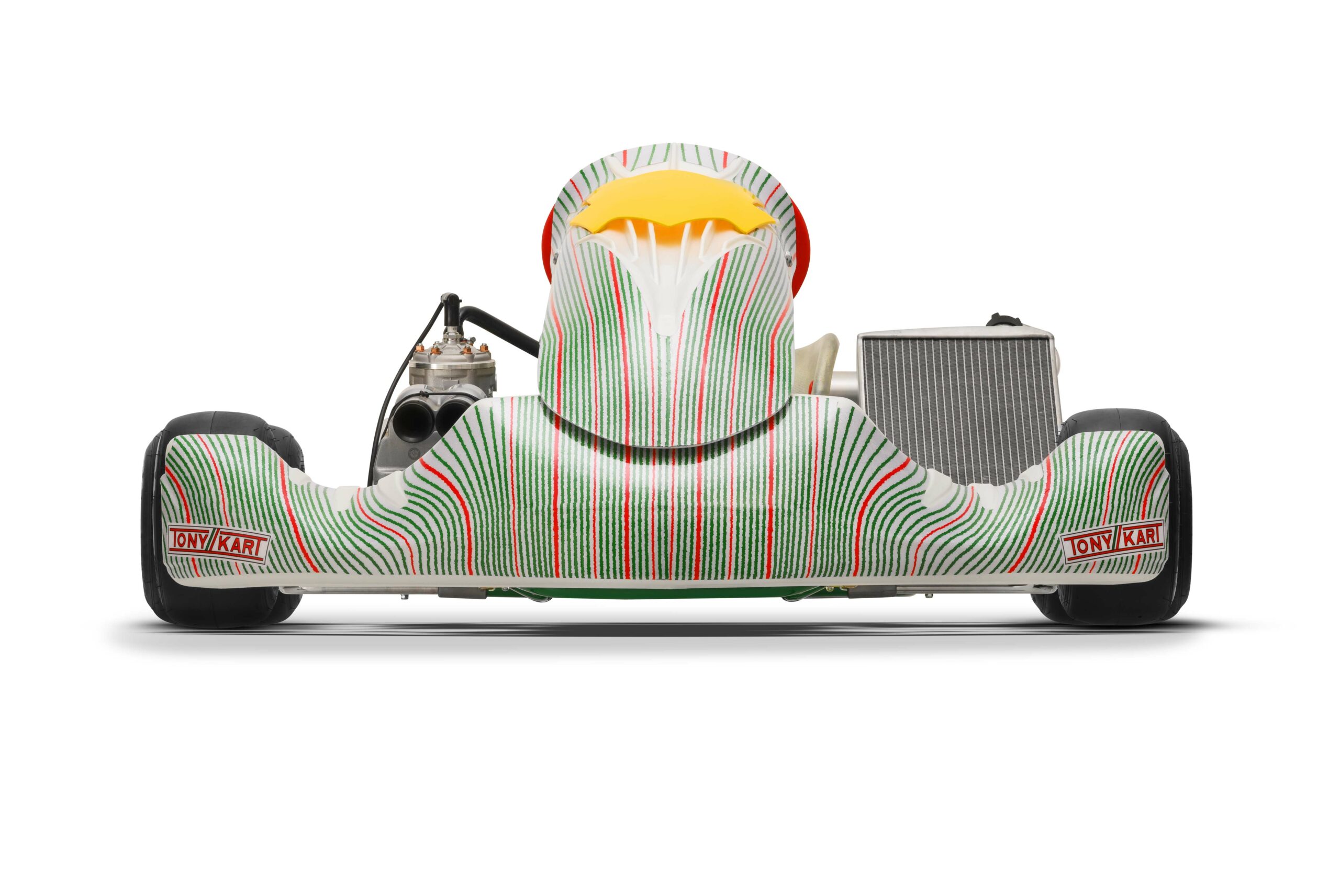

Tony Kart OK (Direct Drive) - Image 2

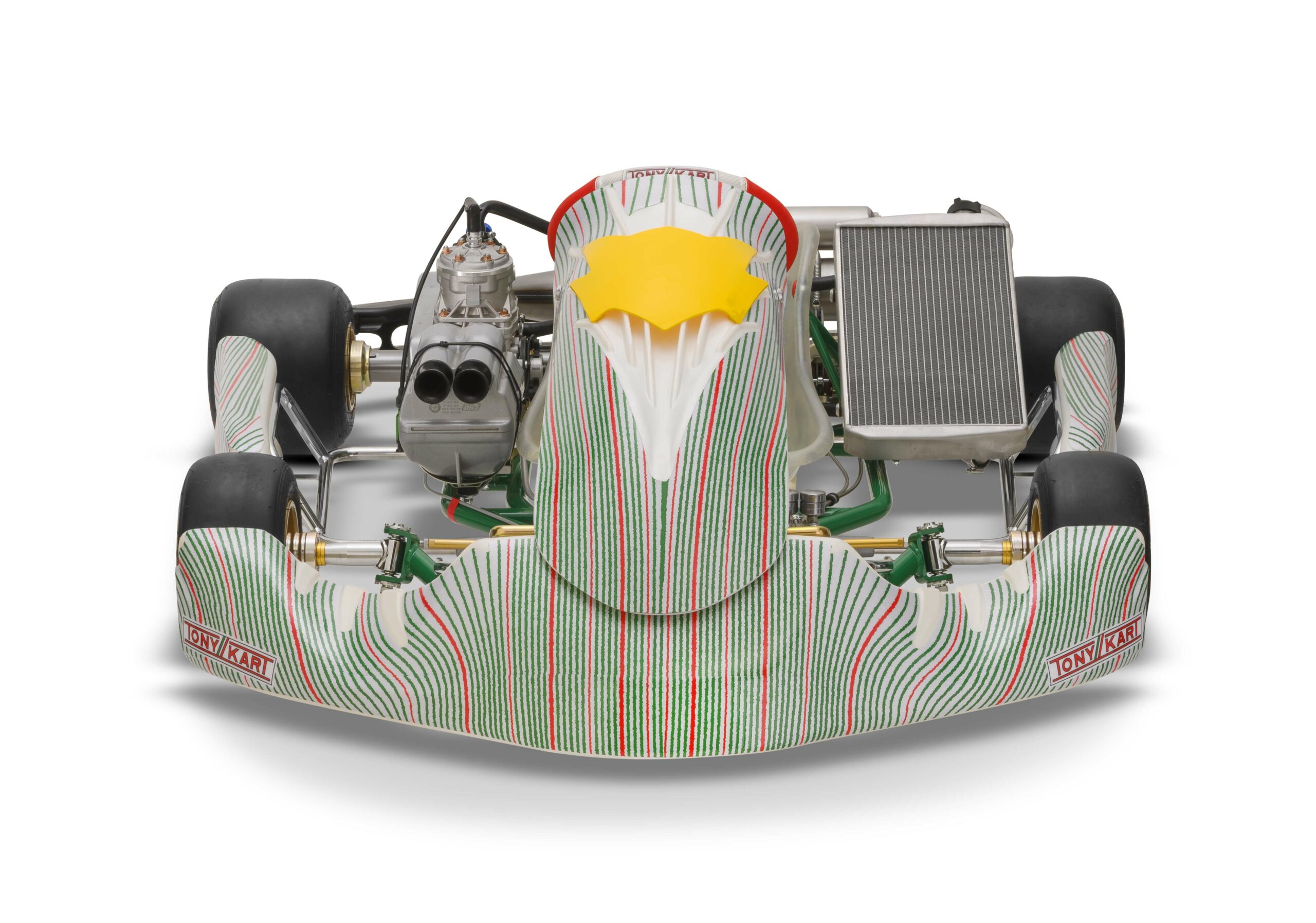

Tony Kart OK (Direct Drive) - Image 3
Tony Kart OK (Direct Drive) - Image 4

Tony Kart OK (Direct Drive)

Tony Kart Direct Drive rolling chassis by OTK Kart Group for direct-drive OK/OKJ racing, with BWD/VO brakes and Ø50 x 1,030 mm rear axle. Available as the Racer 401TS, with Ø30 mm frame tubes, or the Racer 401TDX S, with Ø32 mm frame tubes. Supplied without engine. New 2027 model with HFT stub axles and floating rear brake disc.

From AED 21,507.00

How to choose your options
Model
The frame version: TS models are built with 30 mm tubes, TDX S models with 32 mm tubes.
Configuration
The engine the chassis is prepared for. Rotax comes with the inclined drilled engine mount. X30 lets you choose between the inclined drilled and the flat engine mount.
Engine mount
The plate the engine is bolted to. The OTK part number is shown in brackets.
Seat size
OTK seats come in sizes J and 1 to 4.
The seat must hold the driver firmly at the hips. Not sure which size? Send us the driver's height, weight and waist before ordering and we will advise.
Brake disc
180 mm or 206 mm rear brake disc. The price updates when you select it.
SKU OTKRL - TK - OK - 2027-2029 Category

Description

New 2027 model with HFT stub axles and floating rear brake disc.

Tony Kart Direct Drive rolling chassis for direct-drive categories (OK, OKJ), built by OTK Kart Group and supplied without engine. Available as the Racer 401TS, with Ø30 mm frame tubes, or the Racer 401TDX S, with Ø32 mm frame tubes. Available from Kartshop in Dubai, UAE.

Key specifications

  • Frame: CIK-FIA homologated chrome-moly (Cr-Mo) steel, Ø30 mm (TS) or Ø32 mm (TDX S) tubes, specifically designed for direct-drive categories, height adjustable front and rear
  • Rear axle: Ø50 x 1,030 mm, Type N
  • Brake: BWD/VO, rear hydraulic system with self-adjusting function, one-piece 2-piston caliper and one-piece 2-piston Ø13 mm master cylinder; floating self-ventilated rear disc 206×16 mm
  • Stub axles: HFT, new for the 2027 model
  • Camber and caster: multi-hole eccentric bushes with integrated Ø10 mm uniball
  • Components: magnesium
  • Torsion bars: flat front bar supplied, rear bar optional

In the box

  • Bodywork: M10 sidepods, M11 front spoiler and front fairing with sticker kit, plastic rear bumper (CIK-FIA homologated)
  • Steering wheel: 4-spoke with HGS covering
  • Pedals and footrest: adjustable, aluminium
  • Seat: fibreglass, flat bottom (sizes junior, 1, 2, 3, 4)
  • Wheel set: MXJ 130-212
  • Floor tray: integral
  • Chain guard: integral, with one-piece supports
  • Engine mount with brackets and exhaust supports with silencer cradles, specified at order according to the engine used

Specifications from the official OTK Kart Group price list. Official OTK Kart Group chassis. In stock at our Dubai warehouse where shown; orders are dispatched the same day they are received, with DHL Express delivery across the UAE and the GCC.

Additional information

Model

Racer 401TS (30 mm tube), Racer 401TDX S (32 mm tube)
Configuration

Rotax, X30
Engine mount

Inclined drilled (0038.D0DF), Flat (0038.D0EF)
Seat size

J, 1, 2, 3, 4
Brake disc

180 mm, 206 mm
