AIM MXT 1.3

Description

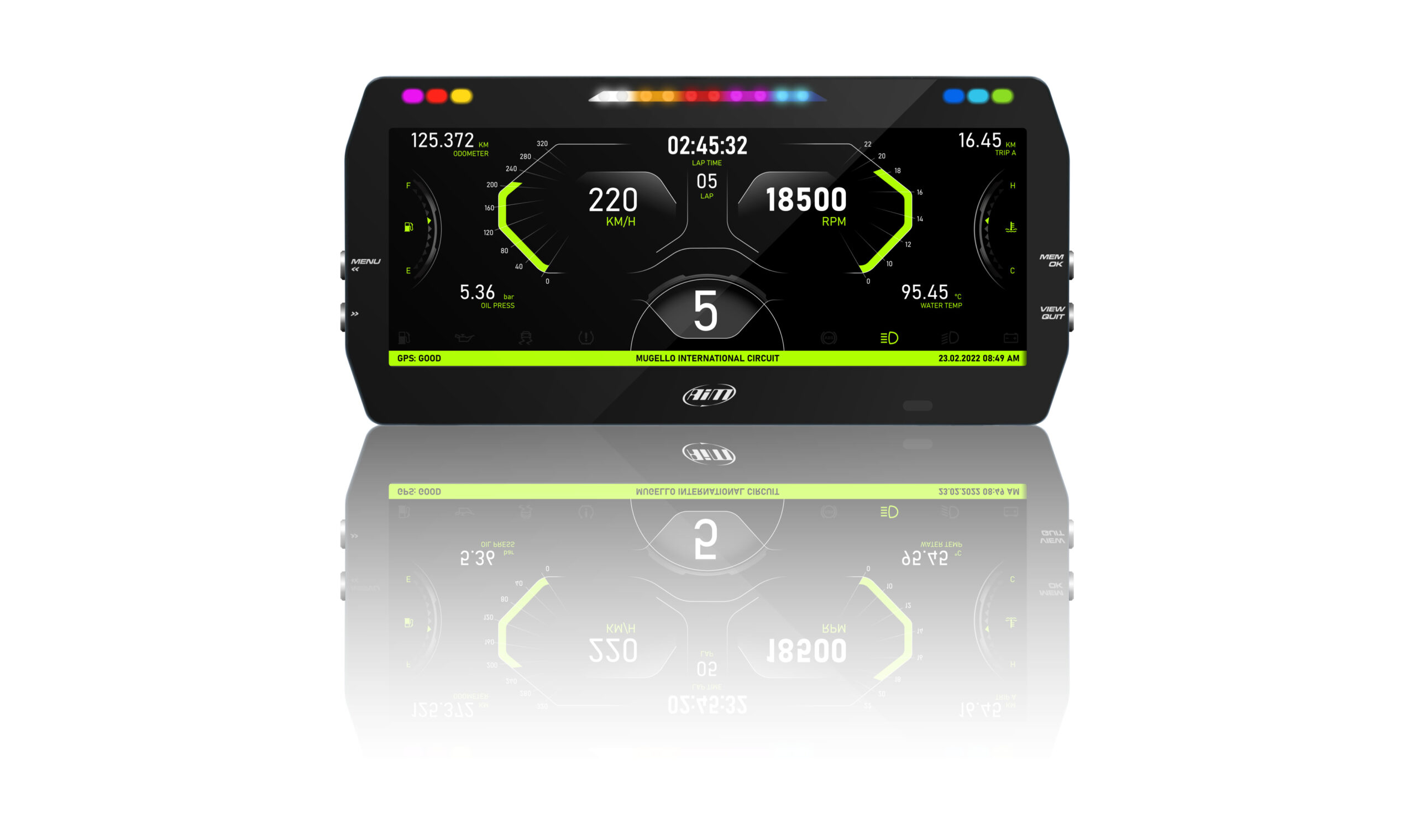

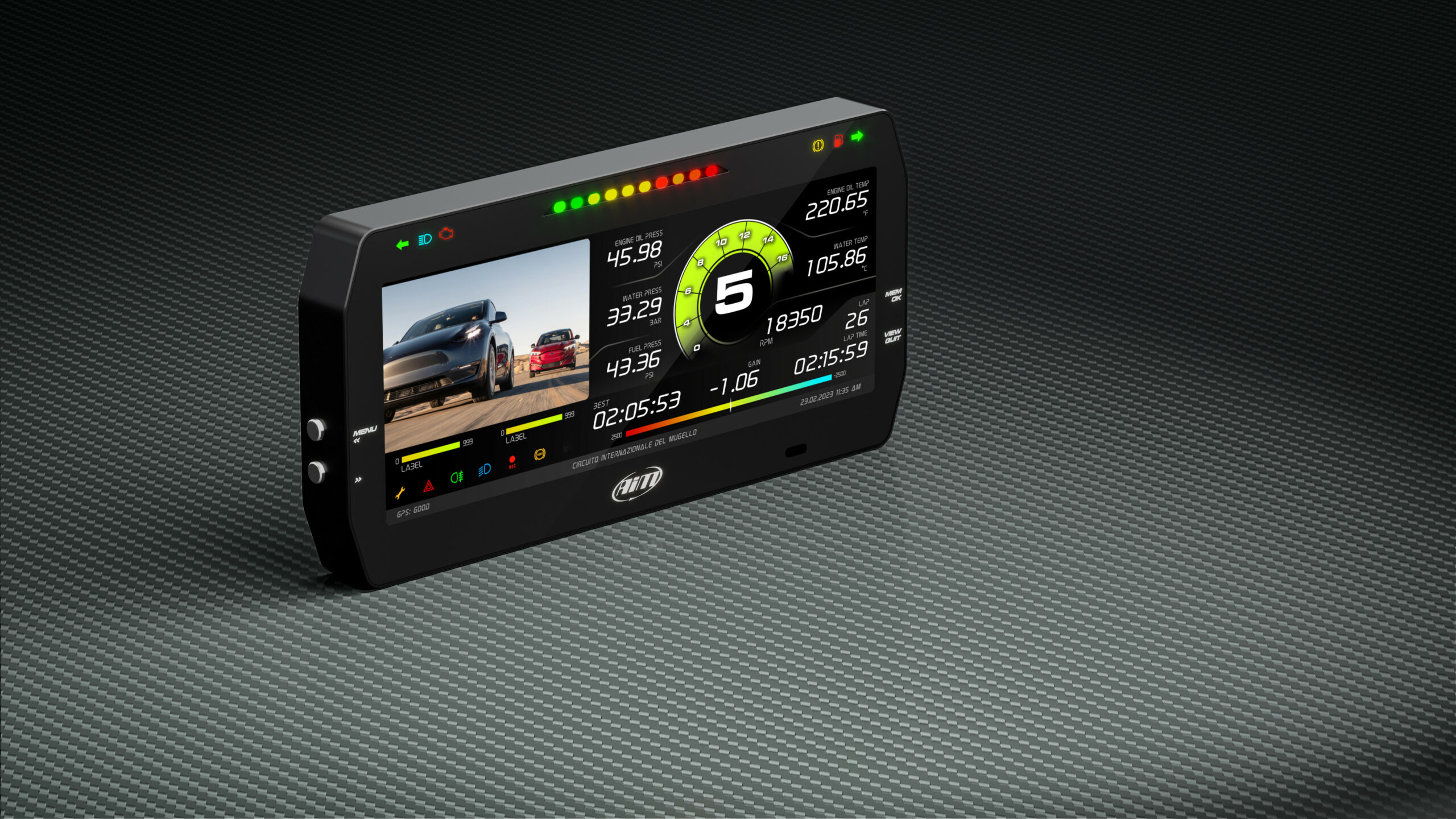

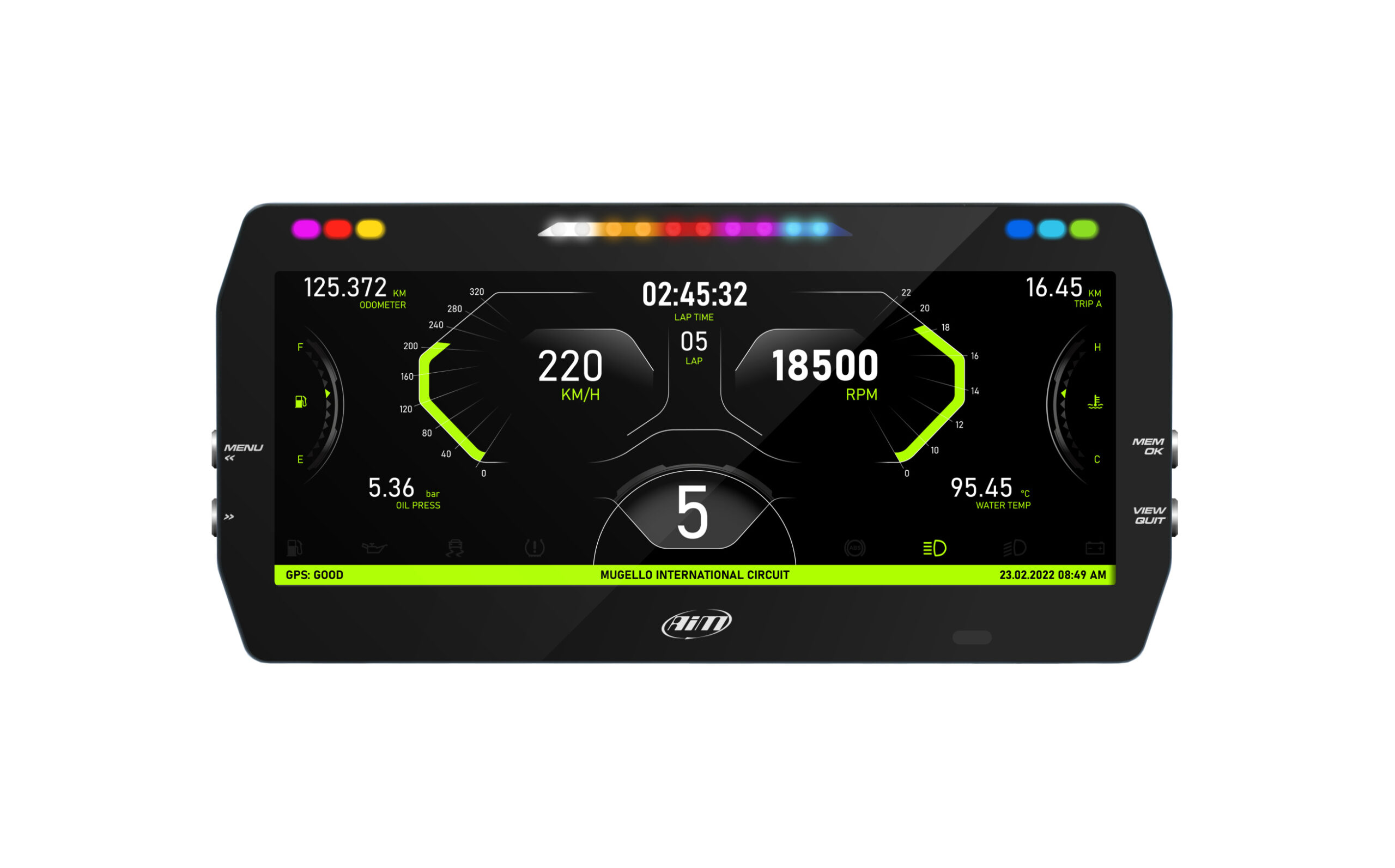

The AiM MXT 1.3 is a 10-inch colour TFT dash logger for cars and professional motorsport, with ECU connection and configurable inputs. This kit comes with the GPS09c module on a 2 m cable. Available in the UAE from our Dubai warehouse.

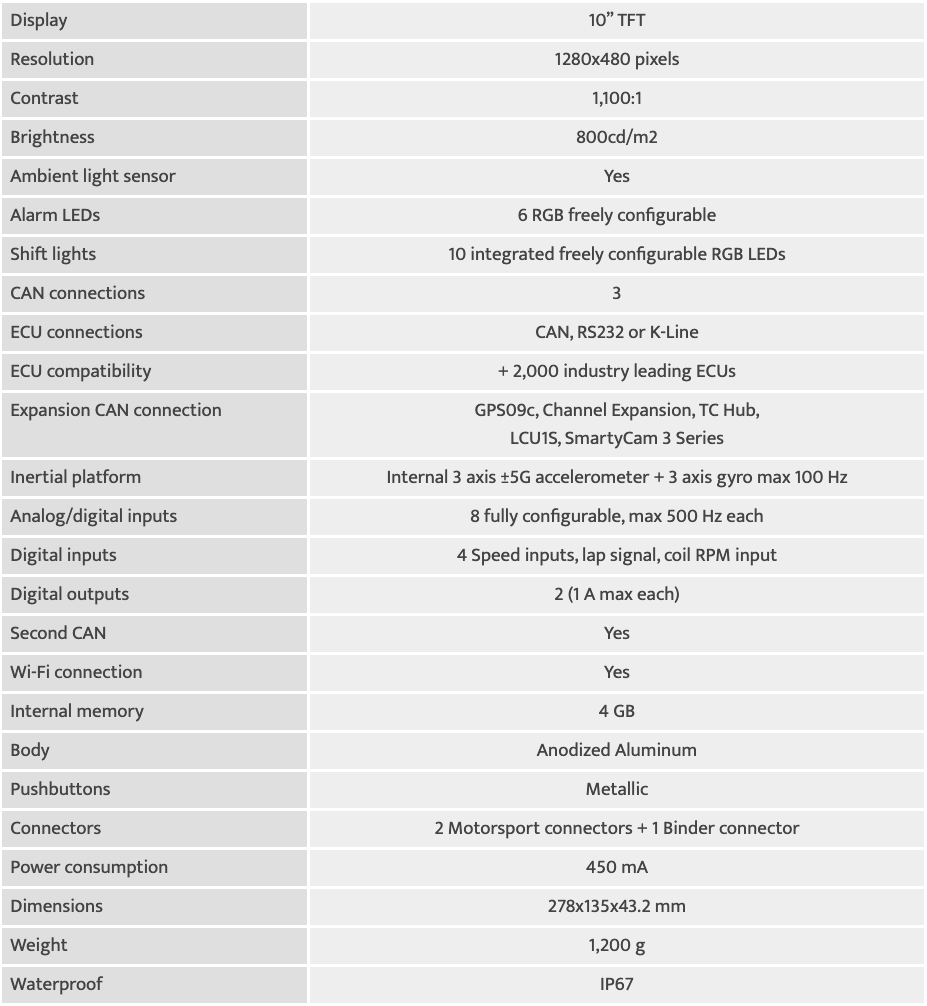

Key specifications

• 10″ TFT display, 1280 x 480 pixels
• 8 fully configurable analog/digital inputs, max 500 Hz each
• 4 speed inputs, lap signal and coil RPM input
• 3 CAN connections; ECU connection via CAN, RS232 or K-Line; expansion CAN and second CAN
• 10 configurable RGB shift lights and 6 configurable RGB alarm LEDs
• 4 GB internal memory
• GPS09c module included (2 m cable)

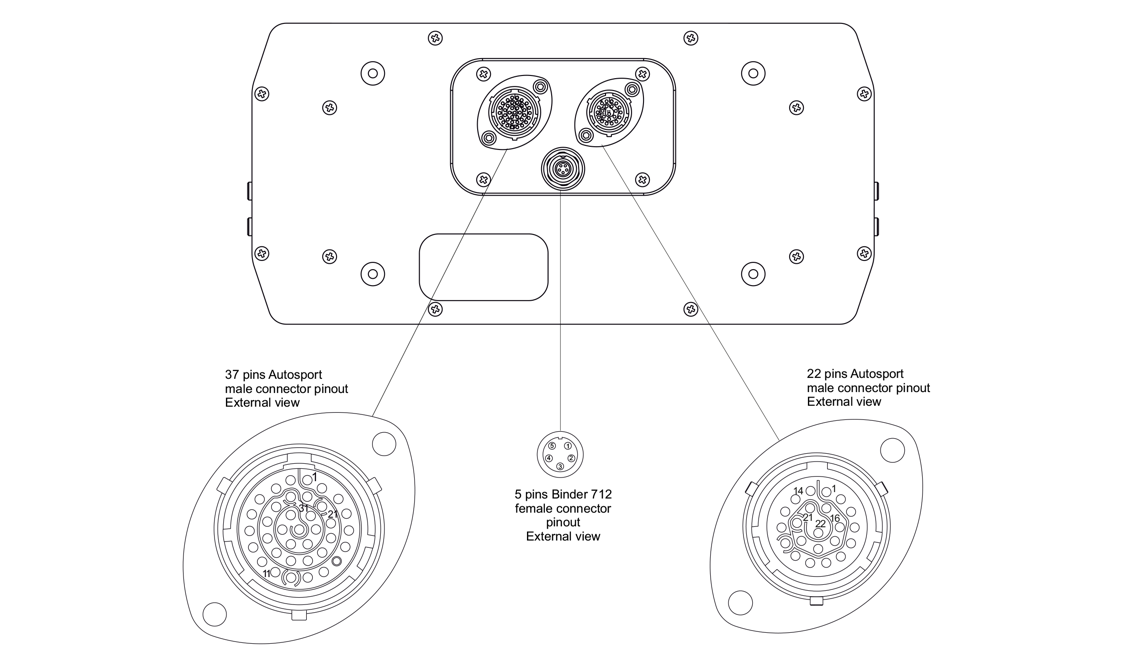

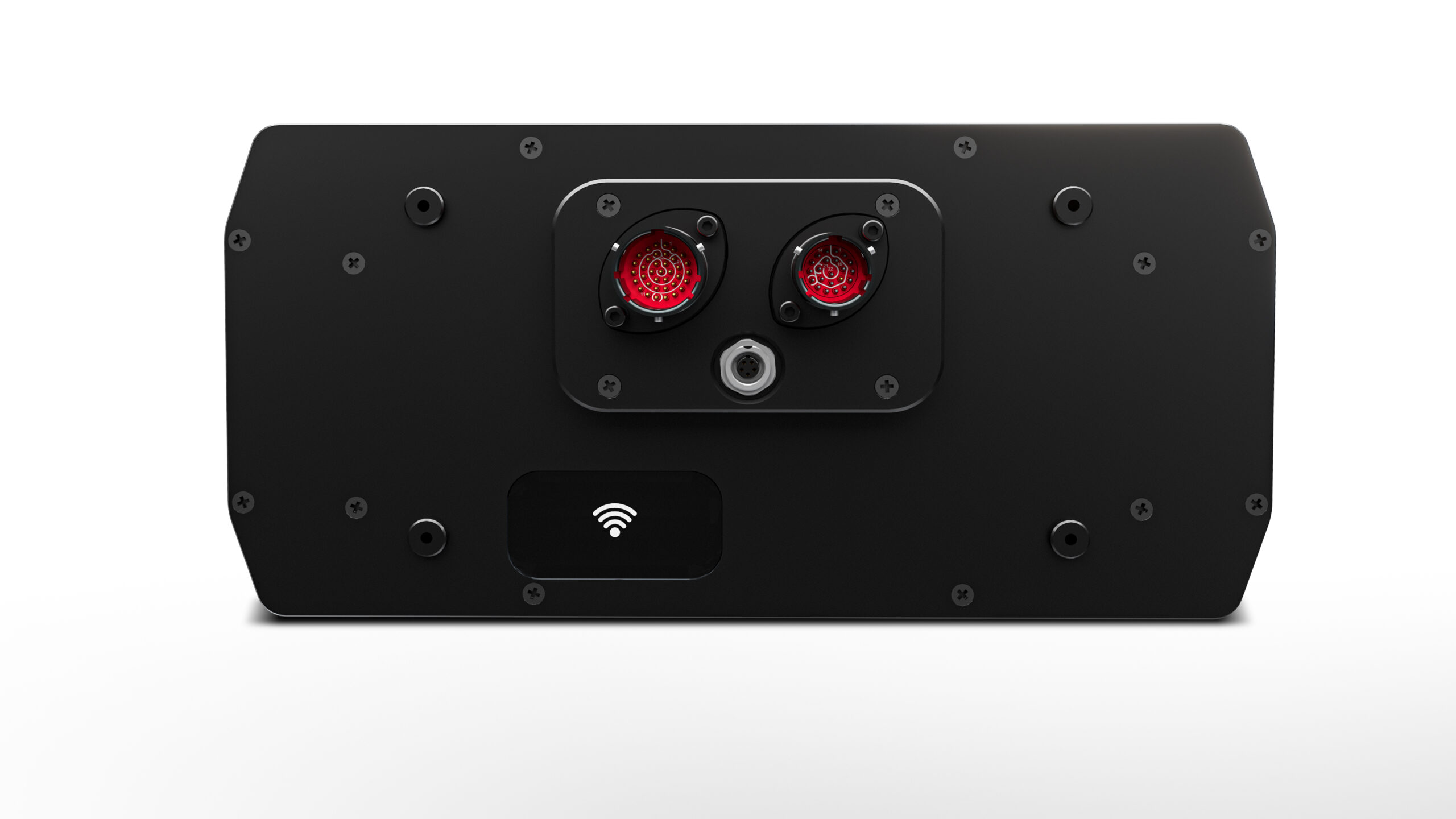

• 2 Motorsport connectors + 1 Binder connector
• Power consumption 450 mA

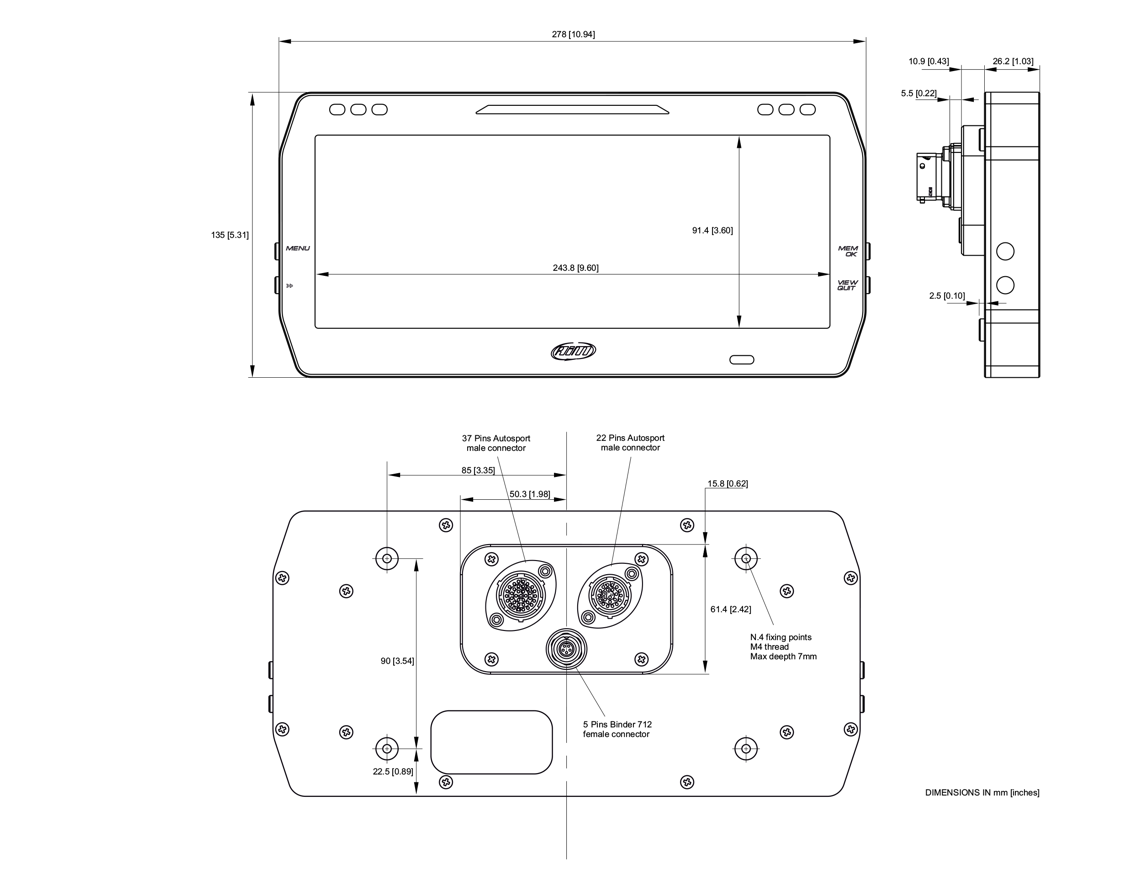

• 278 x 135 x 43.2 mm, 1,200 g
• IP67 waterproof

Compatibility

• Expandable with AiM modules such as SmartyCam, LCU lambda controllers and GPS

Software

Configuration and data analysis in AiM RaceStudio 3.

Genuine AiM part, part number XMXTPAG2001. Scuderia General Trading is the official AiM distributor in the UAE. In stock at our Dubai warehouse where shown; orders are dispatched the same day they are received, with DHL Express delivery across the UAE and the GCC.
